PV Solar Vaj Huam Sib Luag Tu Cov Menyuam Txhuam
Raws li lub hauv paus ntsiab lus ntawm lub hnub ci vaj huam sib luag tu txhuam, lub cev muaj zog txais kev tsim cov dej tsis zoo thiab plua plav, uas tuaj yeem cuam tshuam nrog nag, xuab zeb thiab plua plav thiab txhim kho lub neej kev pab cuam ntawm lub cev muaj zog. Piv nrog rau ob lub taub hau tig txhuam txhuam, lub hnub ci vaj huam sib luag tu cov menyuam txhuam yog sib dua thiab hloov tau yooj yim.
1- xyoo lav rau cov khoom siv hluav taws xob loj thiab cov khoom siv hluav taws xob vim qhov ua tsis tiav los ntawm cov khoom tsis yog tib neeg.
Xa kev nug
Product Details ofPV Solar Vaj Huam Sib Luag Tu Cov Menyuam Txhuam
Sab saum toj ntawm tus pas nrig ntawm PV hnub ci vaj huam sib luag tu cov menyuam txhuam yog tsim los rau hauv cov duab gooseneck, uas yog ntau nyob rau hauv txoj kab nrog tib neeg mechanics thiab txuag zog tshaj li ib tug ncaj ncaj pas nrig. Tus neeg siv nias rau ntawm tus pas nrig siv lub siab, uas ua rau kev ntxuav yooj yim dua thiab ua kom muaj txiaj ntsig zoo. Lub roj teeb lub neej ntawm cov lithium roj teeb pob yog li {{0}}} teev, uas txaus los ntxuav lub hnub ci vaj huam sib luag ntawm 0.5-1.2 MW ib hnub twg.
Cov txhuas lossis carbon fiber telescopic ncej tuaj yeem thim rov qab los ntawm 1.5 m txog 7.5 m raws li xav tau, thiab tsim nyog rau kev tu kom qhuav, ntub dej thiab ntau yam kev ua haujlwm hauv cheeb tsam;
Peb tseem muaj peb qhov kev xaiv fais fab rau txhua tus xaiv los ntawm; Hais txog kev siv dej, qhov PV hnub ci vaj huam sib luag tu cov menyuam txhuam tsis muaj cov khoom siv dej, tab sis peb muaj ntau hom dej twj tso kua mis rau txhua tus xaiv los ntawm kev ywj pheej, thov hu rau peb kom paub meej ntxiv.
Peb Versions rau koj xaiv
Peb tau npaj peb versions rau koj nyob rau hauv ntau qhov chaw ntawm hydropower mov.
M11 Lub tsev hluav taws xob version
M11 version muaj xws li:
- Aluminium los yog carbon fiber telescopic ncej
- 15m-20m dej hose + valve
- 8m hydropower parallel kab
- 8m extension fais fab cable
- Photovoltaic roller txhuam
- tsav lub cev muaj zog
- Lub hwj chim converter
- Accessories pob
M11 version yog nruab nrog lub tshuab hloov hluav taws xob thiab 8 meters ntawm cov xaim, nws tuaj yeem siv los ntawm kev txuas mus rau 100v-240v AC, thiab tuaj yeem txuas ncaj qha mus rau qhov chaw dej / lub twj tso kua mis tuaj yeem yuav nyias.
M12 Lithium roj teeb version
M12 version muaj xws li:
- Aluminium los yog carbon fiber telescopic ncej
- 15m-20m dej hose + valve
- 8m extension fais fab cable
- photovoltaic roller txhuam
- tsav lub cev muaj zog
- 24V / 26ah Lithium roj teeb pob
- Electric caij nplooj ntoos hlav hlau
- Charger
- Hnab ev ntawv
- Accessories pob
M12 version yog nruab nrog ib txheej piggyback lithium roj teeb pob, 24V / 26ah, 8-1 0 teev roj teeb lub neej; tuaj yeem txuas ncaj qha mus rau qhov chaw dej / tuaj yeem yuav cais los ntawm lub twj tso kua mis.
M13 Dual-lub hom phiaj version
M13 version muaj xws li:
- M13 version muaj xws li:
- Aluminium los yog carbon fiber telescopic ncej
- 15m-20m dej hose + valve
- 8m hydropower parallel kab
- 8m Extension kab
- Photovoltaic roller txhuam
- Tsav cov khoom siv tsav tsheb
- Lub hwj chim converter
- 24V / 26ah Lithium roj teeb pob
- Electric caij nplooj ntoos hlav hlau
- Charger
- Hnab ev ntawv
- Accessories pob
Kev sib xyaw ua ke ntawm M11 thiab M12 versions muab ob lub zog muab kev daws teeb meem, kev xaiv dawb, kev sib txuas ncaj qha mus rau qhov chaw dej / cais lub twj tso kua mis.
Configuration/Parameters
|
Khoom npe |
PV Solar Vaj Huam Sib Luag Tu Cov Menyuam Txhuam Txhuam (tuaj yeem ua kom qhuav thiab ntxuav ntub) |
|
Telescopic pas nrig |
Length (M): 3.5/5.5/7.5 Tus lej ntawm Ntu: 3/4/5 Txoj kab uas hla (MM): 35/39.5/43 Phab ntsa Thickness: 1mm Khoom siv: Aluminium Alloy lossis Carbon Fiber |
|
DC Tsav |
Tag nrho lub zog: 120w Voltage: DC24V Rotate Ceev: 350 rpm / min Theoretical Life: 20000 Teev |
|
Lithium roj teeb |
24V / 26ah, 8-10 teev ntawm roj teeb lub neej ntawm tus nqi tag nrho |
|
Txhuam taub hau |
Dav ntawm Txhuam (CM): 60 Kev Pab Cuam: 1-2 xyoo Cleaning Dav (CM): 60 Khoom siv: Nylon Hlau |
|
Hlau & Dej Hose |
Hlau: M11/M13- 16 Meters; M 12- 8 Meters Dej Hose: 15-20 Meters; |
Kev qhia txog kev txhim kho
PV hnub ci vaj huam sib luag tu cov menyuam txhuam yog cov khoom lag luam patented. Qhov no photovoltaic solar vaj huam sib luag tu txhuam muaj lub taub hau txhuam ceev ceev, lub teeb yuag, kev ua haujlwm yooj yim, thiab kev ua haujlwm siab, Nws tuaj yeem siv rau kev ntxuav thiab ziab qhuav.
Siv Flow
1. Txuas cov khoom siv hluav taws xob (lithium roj teeb / lub zog hloov hluav taws xob)
2. Txuas rau cov dej xa dej (tswj system / cov kav dej xa dej)
3. Kho cov dej uas xav tau los ntawm lub valve (qhov loj dua qhov nqus dej)
4. Kho qhov ntev ntawm lub telescopic pas nrig
5. Tes tuav telescopic pas nrig rau kev ua haujlwm tu mus ntev

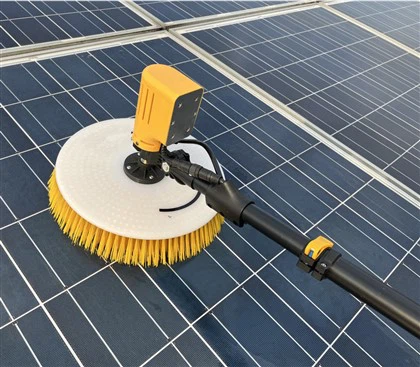

Ob Lub Taub Hau Hluav Taws Xob Hnub Ci Vaj Huam Sib Luag RotatingTxhuamthiabRotated Ib Lub Taub Hau Hnub Ci Vaj Huam Sib Luag Ntxuav Txhuammuaj muag. Thov hu rau peb kom paub meej ntxiv.
Daim ntawv thov
Ntxuav qhov sib txawv
Nov yog peb qhov xwm txheej los qhia koj txog kev ntxuav tom qab siv peb lub taub hau ib lub taub hau solar vaj huam sib luag tu txhuam.
01. Kev tu ib puag ncig nrog cov hmoov av loj
02. Heavy roj tu ib puag ncig
03. Xuas plua plav ntxuav ib puag ncig
Kev Tswj Xyuas Zoo
Runfeng CFRP coj 100% tshuaj xyuas rau kev txiav txim ua ntej ntim. Peb muaj cov khoom kuaj sib txawv rau cov khoom sib txawv, thiab peb tuaj yeem ua tus kheej kuaj raws li cov neeg siv khoom xav tau. Txhua qhov kev txiav txim yuav raug ntim thiab xa tawm tsuas yog tom qab dhau kev tshuaj xyuas.
- Kev tshuaj xyuas cov khoom
- OD, ID, Thickness Inspection
- Kev tshuaj xyuas ncaj ncees
- Kev tshuaj xyuas tus kheej
Daim ntawv pov thawj
Pob thiab xa khoom
